Condition-Based Monitoring & Analytics
Technology & Licensing Partner – Preddio Technologies – SIMPLICITY IoT™
Preddio Technologies is on the forefront of innovation and industry leading IIoT (industrial internet of things) technology, providing reliable, intelligent, and intuitive sensing and analytics solutions for the following markets, in addition to many others:
- Healthcare
- Biomedical
- Manufacturing
- Industrial
- Commercial
- Agriculture
Agility Tech is proud to be Preddio’s EMS trusted advisor and DFM/DFx, production tooling, NPI, global manufacturing, supply chain, logistics, and fulfillment partner. We are equally proud to be a licensed agent to the industry for Preddio’s best-in-class technology. Customized configurations are available and our focus on accelerated time-to-market helps you get your products when you need them. Click here to download "Understanding IoT: A Comprehensive Guide for Industrial and Commercial OEMs.
The Preddio Advantage
Monitor any machine, anywhere, anytime. Access 24/7 preventative maintenance and real-time data collection—allowing you to make informed and expedient decisions about your products, assets, and processes.
SIMPLICITY™ sensors monitor the critical parameters of your equipment. SIMPLICITY Edge™ transcripts the data and sends it along to Preddio’s SIMPLICITY Mobile™ and SIMPLICITY Cloud™ software platforms for a comprehensive, intuitive and simple-to-understand, real-time, and historical view of your equipment.
Preddio’s advanced technology enables you to reliably monitor the following parameters real-time, anywhere in the world and take pre-emptive action prior to equipment failure:
- Equipment vibration
- Surface temperature
- Process temperature
- Process pressure
- Water contact
SIMPLICITY Gauge™
SIMPLICITY Nano™
SIMPLICITY Link™
SIMPLICITY Edge™
SIMPLICITY Cloud™
SIMPLICITY Mobile™
More innovative industry-leading products in development
SIMPLICITY Gauge™
Preddio’s industrial pressure and temperature-sensing solution for monitoring assets 24/7. Locally view alarms, troubleshoot issues in real-time, compare performance metrics against baseline data, and trend historical performance analytics. Connects to Preddio’s SIMPLICITY Cloud™ and SIMPLICITY Mobile™ platforms.
Specifications:
- Pressure range: -14.7 to 1,000 PSIG
- Pressure accuracy: +/- .25 % FS
- Burst pressure: 10,000 PSI
- Temperature/operating range: -4 to 185°F
- Temperature accuracy: +/- 5.4°F
- Installation: ¼ NPT, 316 SS
Ease of use:
- Wireless and simple to install
- Early detection of issues and failures
- Maintenance based on data
- Free Preddio iOS and Android App
- Password-protected data
- Monitor any equipment
SIMPLICITY Nano™
Preddio’s tri-axial vibration, surface temperature, and water contact sensing solution for monitoring assets 24/7. Locally view alarms and compare performance metrics against baseline data. Connects to Preddio’s SIMPLICITY Cloud™ and SIMPLICITY Mobile™ platforms.
Specifications:
- Vibration range: 3-axis accelerometer: +/- 16gs, 1.77in/s
- Temperature range: -4 to 185°F
- Vibration repeatability: average of 3-axis: +/- 8%
- Rugged polycarbonate plastic
- Battery: coin-cell lithium CR2477
- Certifications: FCC, IC, RoHS, CE
- Mounting: magnetic or holder with screw
- IP rating: IP66
Ease of use:
- Wireless and simple to install
- Early detection of issues and failures
- Maintenance based on data
- Free Preddio iOS and Android app
- Password protected data
- Monitor any equipment
SIMPLICITY Link™
Integrates your existing sensors—speed, current, fluid temperature, humidity, vacuum, proximity, pH, etc.—with Preddio’s feature-rich SIMPLICITY Mobile™ and SIMPLICITY Cloud™ platforms.
Features include:
- Mounting: magnetic, integral SS plate with screws, or zip ties
- IP rating: IP66
Ease of Use:
- Connects the vast majority of off-the-shelf sensors directly to Preddio’s SIMPLICITY Mobile™ platform, or to the SIMPLICITY Cloud™ platform via Preddio’s SIMPLICITY Edge™ gateway.
- Each existing/off-the-shelf sensor is wired to a dedicated SIMPLICITY Link™ device using an industry-standard five-position M12 connector interface; option cables and wiring instructions available for easy field termination
- SIMPLICITY Link™ translates the sensor’s analog or digital communication into Preddio’s proprietary Bluetooth format, which is directly received by Preddio’s mobile app in real-time, and by the SIMPLICITY Edge™ gateway that encrypts and forwards the data in real-time to Preddio’s SIMPLICITY Cloud™ web-based platform
- Examples of traditional sensor output types: 0-5V/0-10V; 4-20mA; pulse output; RS232/485
- Easy-to-use single push-button set-up with LED indicator for distinguishing between several SIMPLICITY Link™ devices
- Directly powered via 12-24V DC
- Available SIMPLICITY Link™ options: embedded sensors for measurement of tri-axial vibration and optical surface temperature

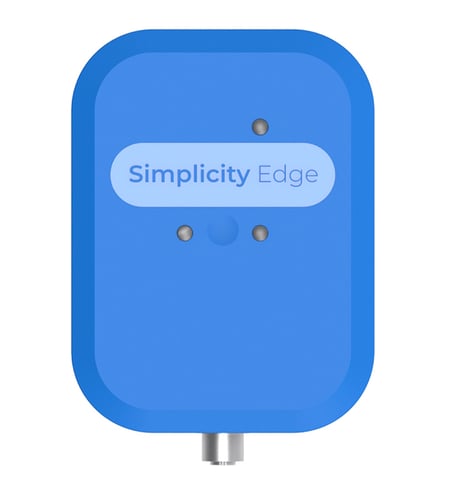

SIMPLICITY Edge™
Preddio’s cellular IoT gateway encrypts and transfers data in real-time from all SIMPLICITY Sense™ devices to the SIMPLICITY Cloud™ platform.
Features include:
- Live cellular streaming
- No IT integration required
- Sensor to gateway: Bluetooth 5.0 (240 Meters)
- Gateway to Cloud: LTE-M
- Configurable data rates
- Supplied with AC to DC power supply
- IP Rating: IP66
- Mounting: magnetic, integral SS plate with screws, or zip ties
Ease of use:
- Wireless communication
- Automatic sensor discovery
- Live-streaming data
- Encrypted data transfer
- Connect up to 50 sensors
- Remote software updates
- Automatic carrier selection
- Battery backup
- Reduce unnecessary site visits
- Simple to use

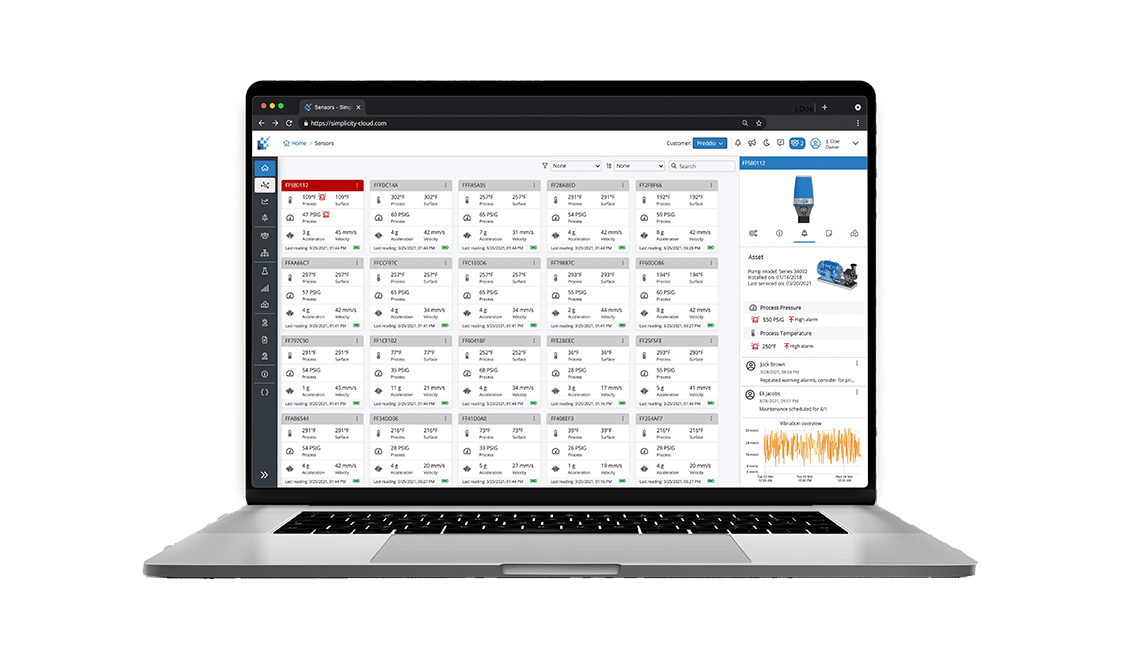

SIMPLICITY Cloud™
Preddio’s intelligent and intuitive web-based platform enabling 24/7 access to real-time and historical data and analytics of all SIMPLICITY Sense™ devices. Remotely monitor assets from anywhere in the world to view alarms, historical trends, and incident logs.
Features include:
- Live sensor data
- Analytic tools
- Asset details
- Alarm thresholds
- Maintenance log
Ease of use:
- Works with all modern web browsers
- Live data to prioritize maintenance
- Understand trends and optimize
- Compare historical asset performance
- Early alarms to predict failures
- Easily view current asset conditions
- Compare like asset performance
- Take pre-emptive action
SIMPLICITY Mobile™
Preddio’s intelligent, intuitive and simple-to-use mobile app allows users to locally view asset alarms, troubleshoot issues in real-time, and trend historical performance data. Connects to all SIMPLICITY Sense™ devices to configure alarms and export data.
Features include:
- Live data mode
- Historical sensor data
- Configurable alarms
Ease of use:
- Works with all modern mobile devices
- Access 30 days of recorded history
- Troubleshoot with live data
- Set alarms and data collection rates
- Export stored alarms and data
- Compare multiple data points
- Understand trends and optimize
- Take pre-emptive action
